LH0032 FET input OPA with 100mA output




LH0032CG, seems to be very popuplar in Japan. It's obsolete now but there are many sources to get both NOS or used ones.
It's an UlatraFast FET input The LH0032 is a FET input, high slew OPA, driving up to 100mA current.

  • Wide bandwidth,
  • high slew rate,
  • high input impedance
  • high current drive capability

Application:
high speed integrator, video amplifier, summing amplifier, high speed D/A converters, etc.


Dissection of LH0032CG


Large-metal-cased with 12 leads


Amplifier Configuration

Nice idea of integrating the Bal. VR!


Microscopic Image of the die in LH0032CG

Vintage topology of LH0032: Hybrid IC and discrete parts formation.




Different topology from diff mfg.

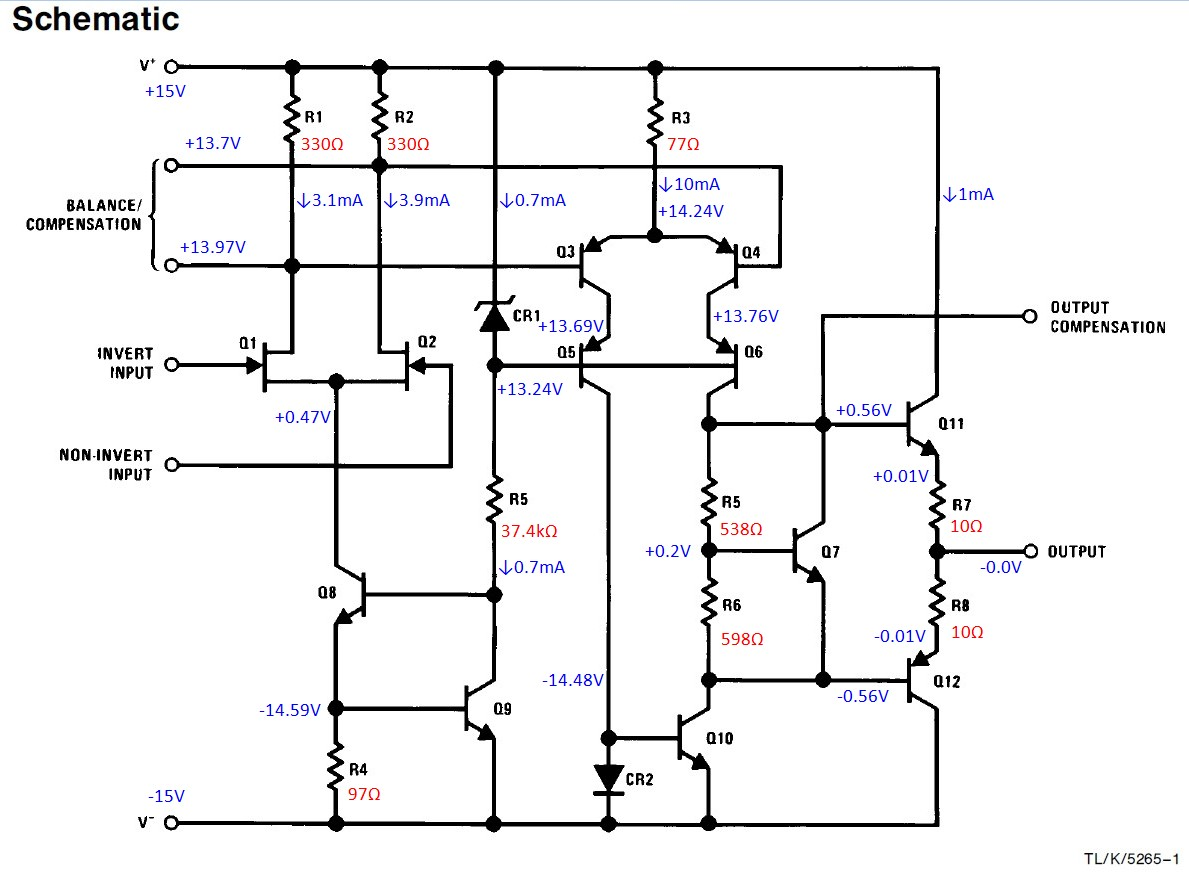

Internal Circuit of LH0032

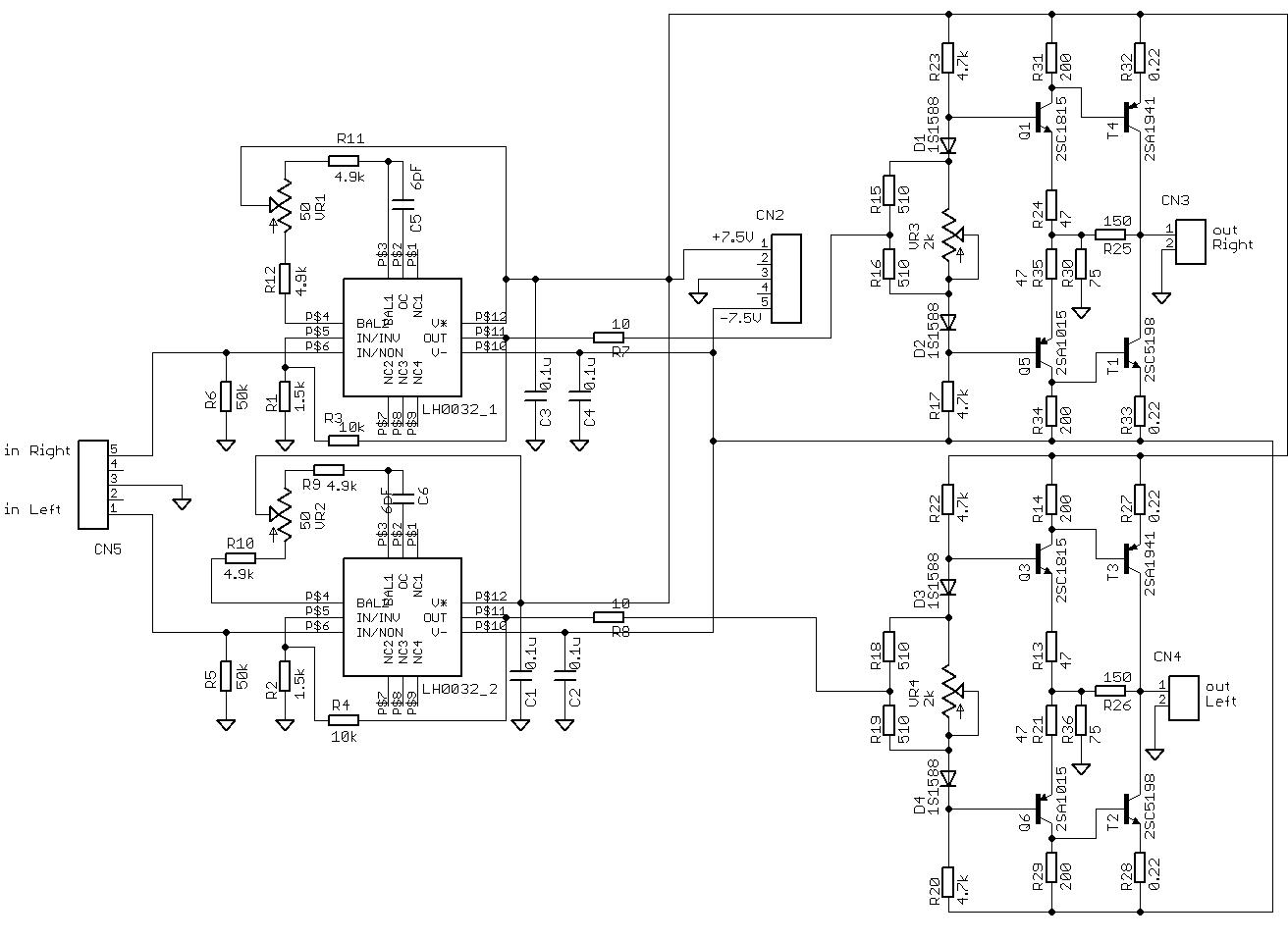

Mini Power Amp based on LH0032, BJT power stage


Good THD <10W


Hybrid Amp: IC+Discrete Power Stage

Temp compemsation diode attatched on power transistor



+-15V HPA





Discrete version from YanaSoft, JP
